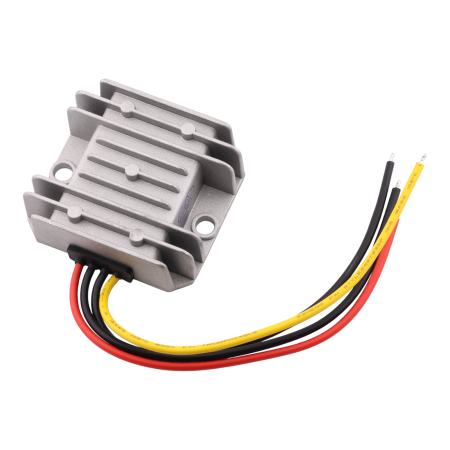

Voltage converter from 48V to 24V, 5A, 120W, IP68, AMPUL.eu
zoom_out_map
chevron_left chevron_right

Voltage converter from 48V to 24V, 5A, 120W, IP68

29.23 €

29.23 € Tax excluded

Including 0.03 € for ecotax

29.23 € without VAT
check In stock

The lowest price in the last 45 days was 35.05 €

datasheet

Very high quality DC/DC voltage converter from 48V DC to 24V DC max. 5A.

Input voltage: 48 V DC (range 30-60 V DC)
Output voltage: 24 V DC, max. 5A
Efficiency: 95.4%
No-load consumption: max. 60mA
Protection against overload, overvoltage, overheating, short circuit
Aluminum construction with fins for heat dissipation
Certificates: CE, ROHS
Working temperature: -40 ~ +80 °C
Ambient humidity: 0~95%
Protection: IP68
Size: 64x57x22mm
Weight: 125g

AMPUL
AM8203
Input voltage
36V DC
48V DC
Output voltage
24V DC
Output current
5A
Output power
120W
Waterproof grade
IP68
Lifetime
100,000 hours
