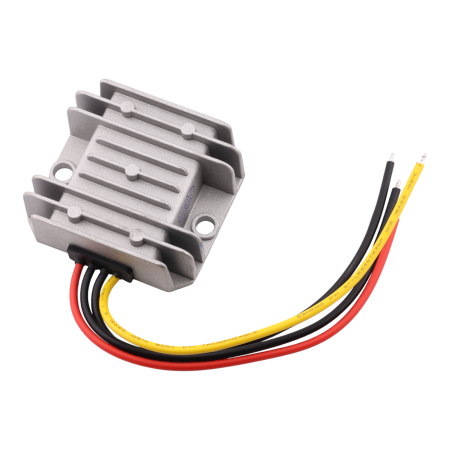

Voltage converter from 12V to 36V, 2A, 72W, IP68

23.62 €

23.62 € Tax excluded

23.62 € without VAT

Including 0.03 € for ecotax

check In stock

The lowest price in the last 45 days was 28.58 €

datasheet

Very high quality DC/DC voltage converter from 12V DC to 36V DC max. 2A.

Input voltage: 12 V DC (range 9-16 V DC)
Output voltage: 36 V DC, max. 2A
Efficiency: 94%
No-load consumption: max. 50mA
Protection against overload, overvoltage, overheating, short circuit
Aluminum construction with fins for heat dissipation
Certificates: CE, ROHS
Working temperature: -30 ~ +80 °C
Ambient humidity: 0~95%
Protection: IP68
Size: 64x57x22mm
Weight: 110g

AM4165
Input voltage
12V DC
Output voltage
36V DC
Output current
2A
Output power
72W
Waterproof grade
IP68
Lifetime
100,000 hours
