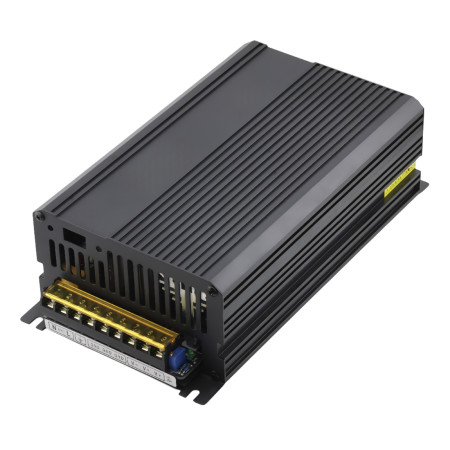

Power supply 30V, 50A - 1500W
Switching industrial power supply designed for built-in or in distribution cabinets. This power supply is of industrial design, it is covered with a metal frame with IP20 protection, it has a standard terminal block with screws for connecting the input mains voltage including a ground wire and three pairs of DC output wires. The power supply has short-circuit protection, over-voltage protection and over-current protection. The industrial power supply is actively cooled. The power supply includes an LED which serves to indicate the power supply, as well as an adjustment trimmer which allows the output voltage of the power supply to be adjusted.
Suitable, for example, for powering servo motors, home automation, entry gates and other applications. Always allow sufficient power reserve (20-25%), the power supply should not be operated at the limit of its power capability for long periods of time. More industrial power supplies of other parameters can be found in our offer.
Input voltage: 190-265 V AC, 50/60 Hz.
Output voltage: 30 V DC, max 50A
Overload protection
Overvoltage protection
Short-circuit protection
Metal construction
Certifications: CCC / FCC / CE, ROHS
Operating temperature: -30~50°C
Ambient humidity: 0~95%
For indoor use only
Size: 240x125x76mm
- Input voltage
- 190V-265V AC, 50/60 Hz
- Output voltage
- 30V DC
- Output current
- 50A
- Output power
- 1500W
- Waterproof grade
- IP20
The maximum continuous recommended load is min. 20% reserve for normal use, for installation with continuous operation is recommended permanent load due to efficiency of switched power supplies with min. 30% reserve to maintain the longest life of the resource.
- All internal sources with active cooling with a fan can be audible, especially if placed in a living room, this is their property.
- For proper service life it is necessary to keep the source clean, regularly clean the air in the fan every 3-6 months!
