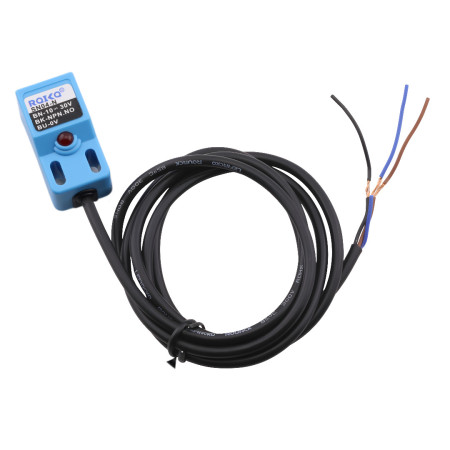

Inductive sensor SN04 N1, NPN NO

NPN NO inductive proximity sensor with LED indication and mounting holes. The module is widely used in automation for detection, control and non-contact switching.

Specifications:
Detection distance: 4 mm ±10%
Adjustable distance: 0-3.6 mm
Detected objects: magnetic and non-magnetic metals (for non-magnetic metals the detection distance decreases)
Target size: metal 18x18x1mm
Indication of switched state
Supply voltage: 10-30V DC
Output current: max. 300mA
Frequency response: 0.5 kHz
Output: 3 wires, Vcc, GND, NPN NO
Protection: IP68
Cable length: 120cm

Package contents: sensor, mounting screws
