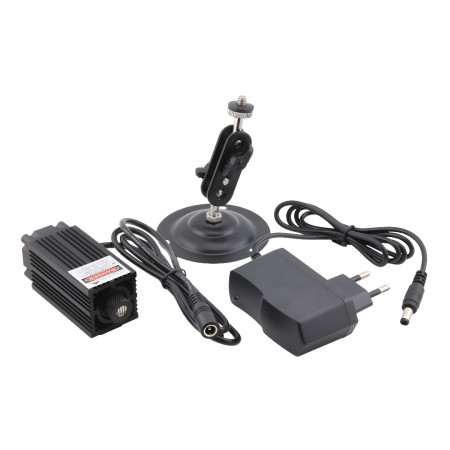

Laser module red 638nm, 500mW, line (set)
Red laser module (638nm) power 500mW. Set of laser module with holder and power supply.
The lowest price in the last 45 days was 172.67 €
datasheet Laser module with refocusable lens. Adjustable holder in 3 axes.
Lens: line
Wavelength: 638nm (red)
Working voltage of the laser module: 12-24V DC
Source input voltage: 220-250V AC
Degree of protection: IP20
Safety class: III B
Working temperature: -20 - 60°C
Laser module size including heatsink: 40x40x108mm
Cable length: 100cm
Connector: 5.5x2.1mm
Range max. 10m
Package contents: laser module, adjustable holder, 12V DC power supply
Safety Warnings:
During operation, avoid any impact of the beam into human or animal eyes. The laser is not safe for human health.
RADIATION ANGLE | LINE LENGTH ±10% | ||
DISTANCE | 1M | 2M | 3M |
15° | 25 cm | 52 cm | 79 cm |
30° | 53 cm | 107 cm | 160 cm |
45° | 82 cm | 165 cm | 248 cm |
60° | 115 cm | 230 cm | 346 cm |
110° | 285 cm | 571 cm | 857 cm |
