Laser module green 520nm, 100mW, line (set)

Green laser module (450nm) power 100mW. Set of laser module with holder and power supply.

146.28 €

146.28 €

  • 146.28 € excl. VAT
check In stock
Datasheet local_shipping Shipping Calculator

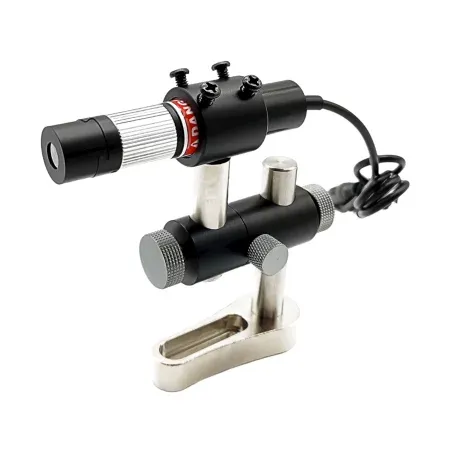

Laser module with refocusable lens. Adjustable holder in 3 axes.

Lens: line

Wavelength: 420nm (green)

Working voltage: 5V DC

Source input voltage: 220-250V AC

Current: max. 300mA

Degree of protection: IP20

Safety class: III B

Working temperature: -20 - 60°C

Laser module size: Ø16x81mm

Cable length: 100cm

Range max. 10m

Package contents: laser module, adjustable holder, 5V DC power supply

Safety Warnings:
During operation, avoid any impact of the beam into human or animal eyes. The laser is not safe for human health.

RADIATION ANGLE

LINE LENGTH ±10%

DISTANCE
LASER
MODULE

1M

2M

3M

15° 25 cm 52 cm 79 cm
30° 53 cm 107 cm 160 cm
45° 82 cm 165 cm 248 cm
60° 115 cm 230 cm 346 cm
110° 285 cm 571 cm 857 cm
AM0352-110
Voltage
5V DC
Light color
Green
Wavelength
520 nm
Power
100mW
Cable length
100cm
Waterproof grade
IP20
