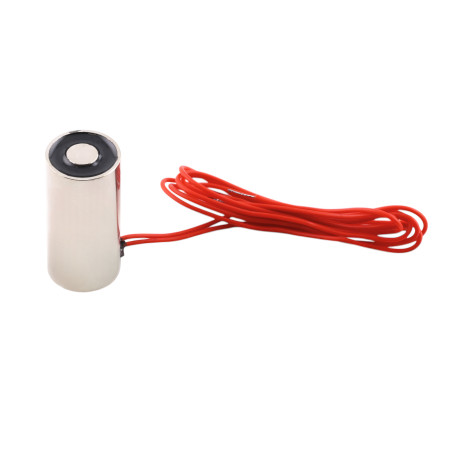

Electromagnet 1kg, 10N, 13x27mm
Fully encapsulated industrial quality electromagnet with 10N holding force.
Fully encapsulated industrial quality electromagnet.
Holding force 1kg / 10N
limit temperature 103°C
size 13x13x27 mm
thread size M3
cable length 200 mm
price for 1 pc
The adhesive surface must be cleaned before first use
- Holding force
- 10 N
- Waterproof grade
At the customer's request, we are able to produce various types and types of electromagnets with an operating voltage of 3-48V DC.
Retained electromagnets in circular or rod design with a holding force from 45 N to 50,000 N offer the optimal choice for use in robotics, lifting, transport, clamping technology and in construction equipment technology as well as household equipment and security systems. For critical surface structures, a special pole design can be used according to the customer's wishes. These products are manufactured and tested in accordance with DIN VDE 0580.
Lifting and control solenoids:
Lifting and control electromagnets find a very wide field of action in areas where flap control, turnout setting, locking and unlocking of the system are carried out. With strokes of 1-50 mm, linear actuators from fine mechanical to heavy machinery can be released without complex and expensive pneumatic or hydraulic components. An extremely long service life of several million cycles can be realized depending on the application. The magnetic separation system here offers a very efficient solution for almost all solid and liquid products.
Separation of ferromagnetic particles and detection of metallic particles:
Quality assurance in the food and plastics industry. Protection against machine damage and production stoppage. To protect the machine, the limits of the smallest metal particles to be detected can be very different. The choice of system should be taken with consideration of the damage that may occur. In the area of food, the goals are precisely set by HACCP. The consequential damages caused by the delivery of insufficiently controlled products are almost unpredictable here.
By choosing the right magnetic clamping system, the next job can be done while the next part is still being machined. It is necessary to achieve the maximum use of the device, including the minimum number of settings.
Complete lifting technique:
- Lifting magnets for standard applications - For handling material weighing from 100 kg to 10,000 kg. Saving time with minimal effort.
- Magnets for lifting equipment - Complete solution with traverse and control for large-volume handling of material up to 60,000 kg.
- Cranes secured against movement - Safe and convenient handling of material up to 60,000 kg.
- Clamps for high stress - Without magnetic handling of material up to 500 tons.
- Lightweight mobile gantry and slewing cranes - Optimized functionality at the workplace.
- Electric and pneumatic handling equipment - Intelligent - sensitive - practical - robust
For more information, please contact us by email at firstname.lastname@example.org.
