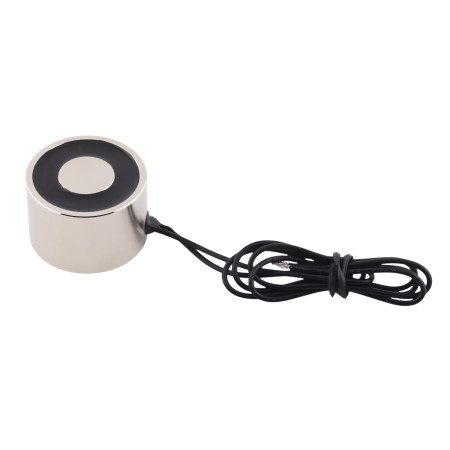

Electromagnet 24kg, 240N, 32x22mm
Fully encapsulated industrial quality electromagnet with 240N holding force.
The lowest price in the last 45 days was 28.39 €
datasheetFully encapsulated industrial quality electromagnet.
Holding force 24kg / 240N
minimum anchor thickness 4mm
power 3.6W
limit temperature 130°C
size 32x32x22 mm
thread size M4
cable length 600 mm
weight 0.1kg
price for 1 pc
Manufactured and tested in accordance with DIN VDE 0580.
Maximum holding forces are given for St37 and refer to optimum workpiece thicknesses with a gap between 0 mm and 100%, holding surface coverage at 90% of rated stress and operating temperature. (About 60 K above temperature without additional heat dissipation)
- Performance
- 3.6W
- Thread
- M4
- Holding force
- 240 N
- Waterproof grade
- IP65
- Type
- Magnetizing
