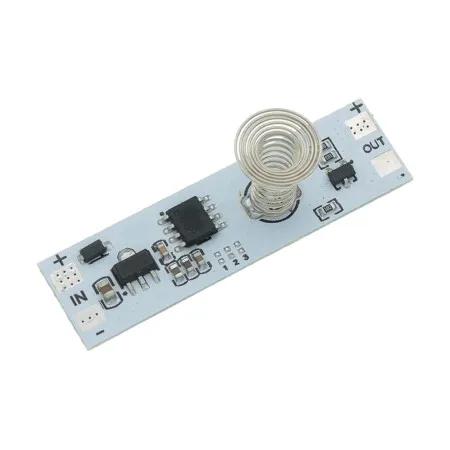

Touch switch for LED strips in the strip, 12mm, capacitive

3.54 €

3.54 € Tax excluded

3.54 € without VAT
check In stock

The lowest price in the last 45 days was 4.28 €

datasheet

Small but highly functional. Capacitive controller with dimming for LED strips intended directly for aluminum profiles with an internal width of min. 12 mm.

Control:
Short up to 0.5s palm (finger) switch off, switch on
Long over 0.5s palm (finger) dimming (0% - 100%)

blue LED as switch position indication
working temperature: -20 to 85 ℃
brightness control
voltage 12V, 24V
max. output 3A
size: 42x12mm

AM7789
Voltage
12-24V DC
Connector
without connector
Twilight
Yes
Waterproof grade
IP20
