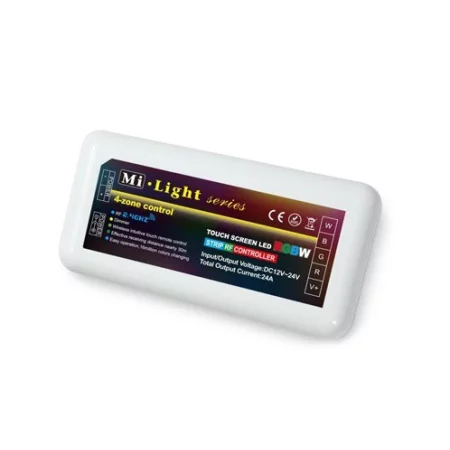

Mi-light - control unit for RGBW LED strips, 2.4GHz receiver
The lowest price in the last 45 days was 14.18 €
datasheetControl unit for RGBW LED strips. To use the control unit you need a Mi-Light driver. Pairing is very simple, just disconnect the control unit from the power supply and reconnect. During the next 3 seconds, you need to press and hold the power button once briefly to turn on one of the 4 zones that are on the controller.
IF EVERYTHING GOES WELL, THE STRIP WILL FLASH SEVERAL TIMES IN SUCCESSION.
RGBW are special tapes that are equipped with powerful single-colour diodes in warm or cool white in addition to RGB diodes. This driver is used to control these LED strips. It can also be used for classic RGB strips and one powerful white LED strip together!! This gives you extensive possibilities to combine different types of LED strips and control them with just one controller.
This unit can be connected to a WI-FI module and everything can be controlled using a mobile phone or tablet with IOS or ANDROID operating system.
Warranty: 36 months
Specifications:
Operating voltage: 12, 24V DC
Output current: 6A 4CH
Power: 288W/12V, 576W/24V
Control: 2.4Ghz Wi-Fi, 802.11b/g/n
Range: up to 50m in built-up areas, 100m in open areas
Operating temperature: -20 - 60°C
Product dimensions: 85x45x23mm
Package dimensions: 95x52x27mm
Product weight: 60 g
Certifications: CE, FCC , RoHS
