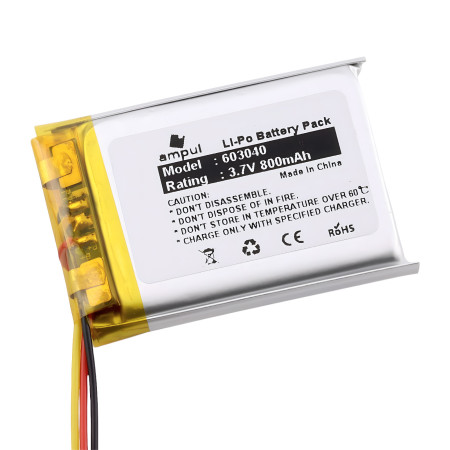

Li-Pol battery 800mAh, 3.7V, 603040, 3pin
3.7V Li-Pol battery with a capacity of 800mAh, without memory effect. Integrated protection chip.
The lowest price in the last 45 days was 8.11 €
datasheetLithium-polymer rechargeable batteries are used in all personal electronic devices (e.g. mobile phones, cameras, laptops, RC models, ...). No need to fully discharge before charging, no memory effect. Simple and trouble-free connection of many articles in series.
Integrated protection chip.
Voltage: 3.7V
Capacity: 800mAh
Charging voltage: 3.7-4.2V DC
Connector: JST SH 1.0mm - 3pin
Number of charging cycles: 2000
Minimal self-discharge (approx. 5% per month)
Working temperature: -10 - 50°C
Size: 40x30x6mm
Type marking: 603040
ATTENTION: If the voltage drops below 2.7V, the battery can be irreversibly destroyed.
- Capacity
- 800 mAh
- Capacity (Wh)
- 2.96 Wh
- Voltage
- 3.7V DC
- Connector
- JST SH2 - 3pin
- Thickness
- 6.0mm
- Discharge current
- 1C
