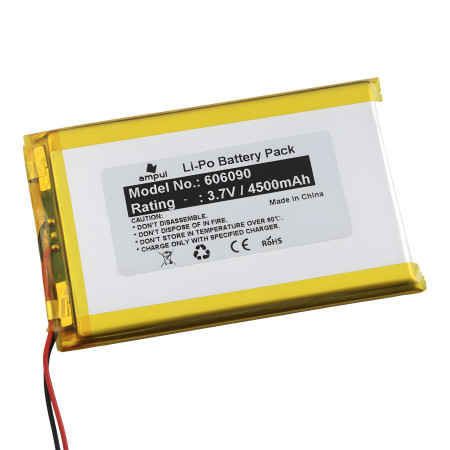

Li-Pol battery 4500mAh, 3.7V, 606090

3.7V Li-Pol battery with 4500mAh capacity, no memory effect. Integrated protection chip.

12.26 €

12.26 € Tax excluded

12.26 € without VAT

Including 0.02 € for ecotax

check In stock

The lowest price in the last 45 days was 14.84 €

datasheet

Lithium polymer rechargeable batteries are used in all personal electronic devices (e.g. mobile phones, cameras, laptops, RC models, ...). No need to fully discharge before charging, no memory effect. Simple and seamless connection of many cells in series.

Integrated protection chip.

Overcharging protection (4.25 ± 0.05V, reset at 4.23 ± 0.05V), overdischarge protection (2.7 ± 0.1V), overcurrent protection (max. 3A)

Voltage: 3.7V

Capacity: 4500mAh

4.2V DC

Standard charging method: 0.5 C CC (constant current) charging at 4.25V, then CV (constant voltage 4.2V) charging until charging current is less than or equal to 0.05 C

Maximum discharge current: 1C

Number of charge cycles: 2000

Minimum self-discharge (approx. 5% per month)

Operating temperature: -10 - 50°C

Size: 90x60x6mm

Type Marking: 606090

AM4266
Capacity
4500 mAh
Capacity (Wh)
16.65 Wh
Voltage
3.7V DC
Connector
without connector
Thickness
6.0mm
Discharge current
1C
